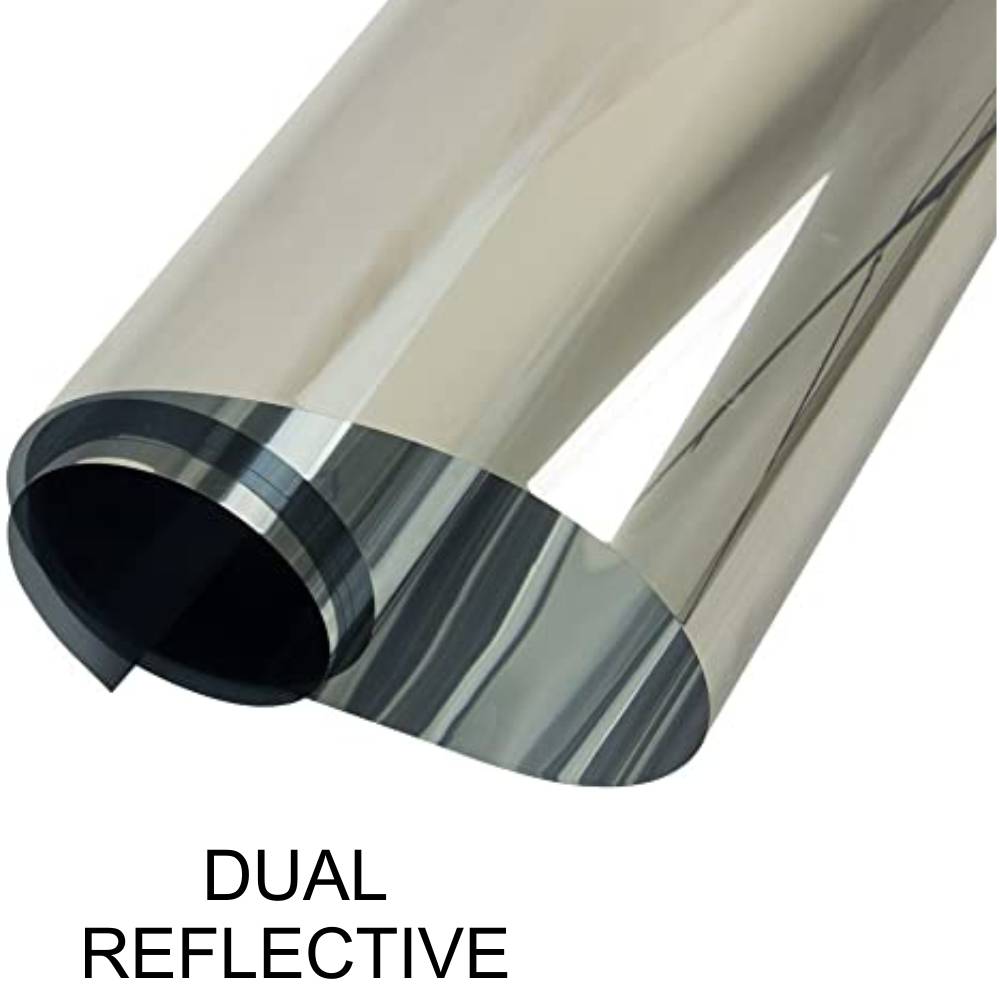

Dual reflective films are high-performance window films designed for architectural applications, offering excellent heat rejection and glare reduction while maintaining clear visibility from the inside. These films have a reflective outer layer to enhance privacy and reduce solar heat gain, while the interior side is less reflective, allowing for clear views and comfortable natural light. Ideal for both residential and commercial properties, dual reflective films improve energy efficiency, reduce fading of interior furnishings, and provide UV protection, all while maintaining a balanced indoor aesthetic. They are perfect for enhancing privacy without compromising visibility.
Note: The performance data reported on this page was tested at DSET Lab & MATRIX Lab, USA using ASHRAE, ASTM & AIMCOL Standards. All values are applied to 1/8 inch (3mm) glass. Tests are representative of actual production samples and may vary from batch to batch.
| Dual Reflective |
|---|
| 05% | 15% | 35% |
|---|
| Thickness of Film (Mil) | 2.0 | 2.0 | 2.0 |
|---|
| % Solar Energy Transmittance | 7% | 13% | 29% |
|---|
| % Solar Energy Absorptance | 39% | 43% | 47% |
|---|
| % Solar Energy Reflectance | 54% | 44% | 24% |
|---|
| % Visible Light Transmittance | 7% | 15% | 35% |
|---|
| % Visible Light Absorptance | 28% | 38% | 40% |
|---|
| % Visible Light Reflectance Int. | 14% | 21% | 14% |
|---|
| % Visible Light Reflectance Ext. | 65% | 47% | 25% |
|---|
| % Ultra Violet Rejected | 99% | 99% | 99% |
|---|
| Shading Coefficient | 0.20 | 0.29 | 0.48 |
|---|
| % Total Solar Energy Rejected | 82% | 75% | 58% |
|---|
| % Glare Reduction | 93% | 84% | 61% |
|---|
| Emissivity | 0.70 | 0.77 | 0.72 |
|---|
